Replacement Complete PTO for Twin Disc C108HP4
Category: Complete PTOs SKU: TDWPTP0814AC000PTOBOM Number Required
Your Twin Disc PTO should have both a Model Number and a BOM Number. Only the BOM Number provides definitive confirmation. If you don't have the BOM number, please call a Foley Expert.
Call a Foley Expert$1,245.00
Complete PTO to replace Twin Disc C108HP4 and WPT P08-14AC-000 PTO clutches; (see Description for possible replacements to Rockford, NACD or other PTOs)
Need help? We’re available:
We're available Mon–Thurs 8:30–5, Fri 8:30–3 (EST)
1-800-233-6539Chat with an expertDescription

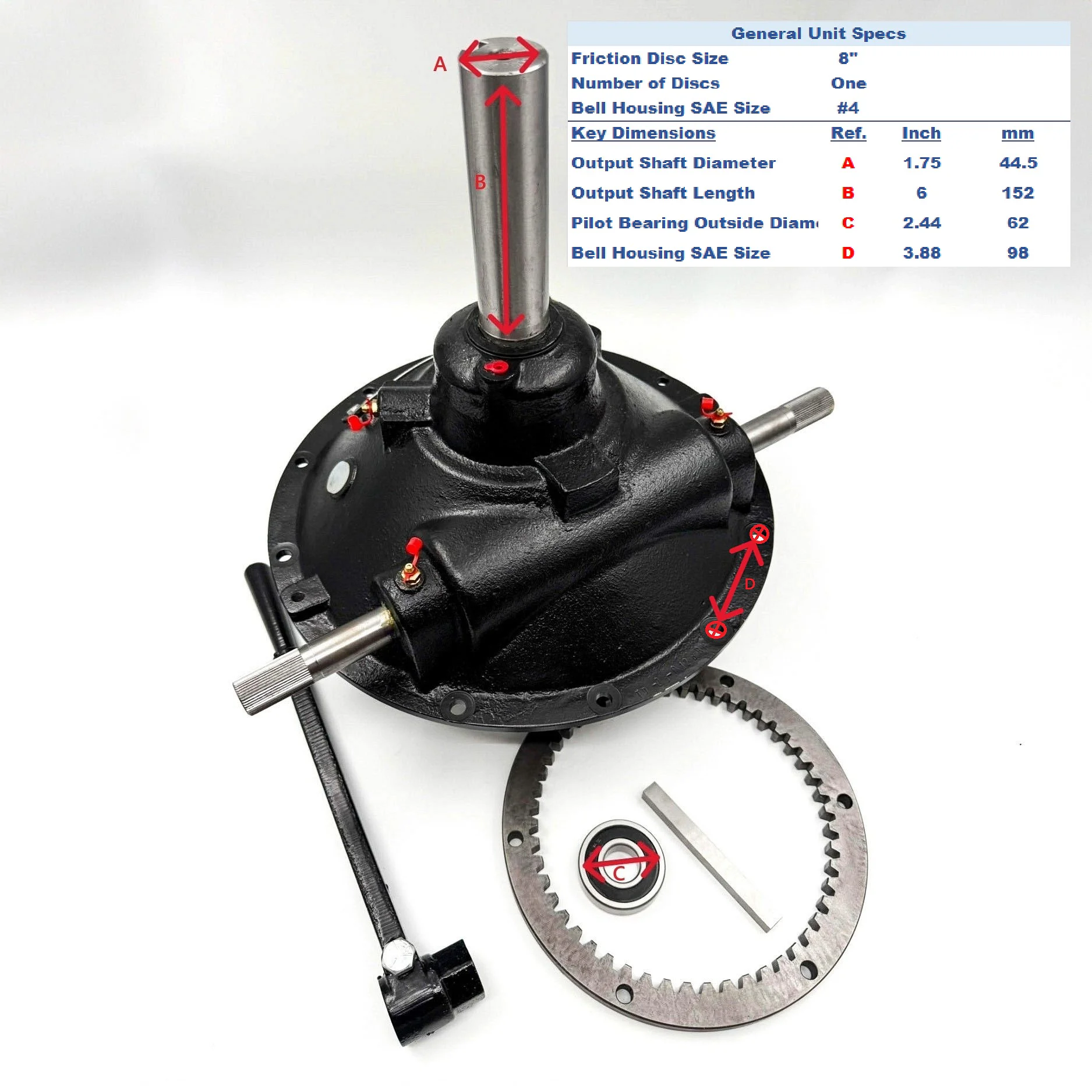

Replacement for the certain Twin Disc model C108HP4 PTOs and the WPT Power model P08-14AC-000 mechanical power take-off clutches (PTOs). This all new unit comes complete with a replacement drive ring and pilot bearing. If you have any question whether this is the correct replacement for your PTO you can view the detailed plans and specifications for this unit HERE, or call us and we can make sure you get the correct replacement PTO to get you back up and running. This PTO MIGHT also work as a replacement for the Rocford 4-31026, 4-38005, NACD 431026AM & 438005AM and Wisconsin Motors/Continental Engines pn: WC328C1SI PTOs, but due to some minor dimensional differences you should confirm these dimensions will work for your application by reviewing the plans and specifications. If you have any question whether this PTO is an appropriate fit for your application please call us at 866-821-2468 or e-mail info@foleyengines.com; We want to be sure you order the correct PTO for your application.
Specs
| Weight | 110 lbs |
|---|---|
| Dimensions | 24 × 24 × 24 in |
| Brand Fit | Twin Disc, WPT Power |
| Make | WPT Power |
| Bell Housing SAE | 4 |
| Output Shaft Diameter | 1.75"/44.45mm |
| Output Shaft Length | 6.00"/152.40mm |
| Pilot Bearing OD | 2.44"/62mm |

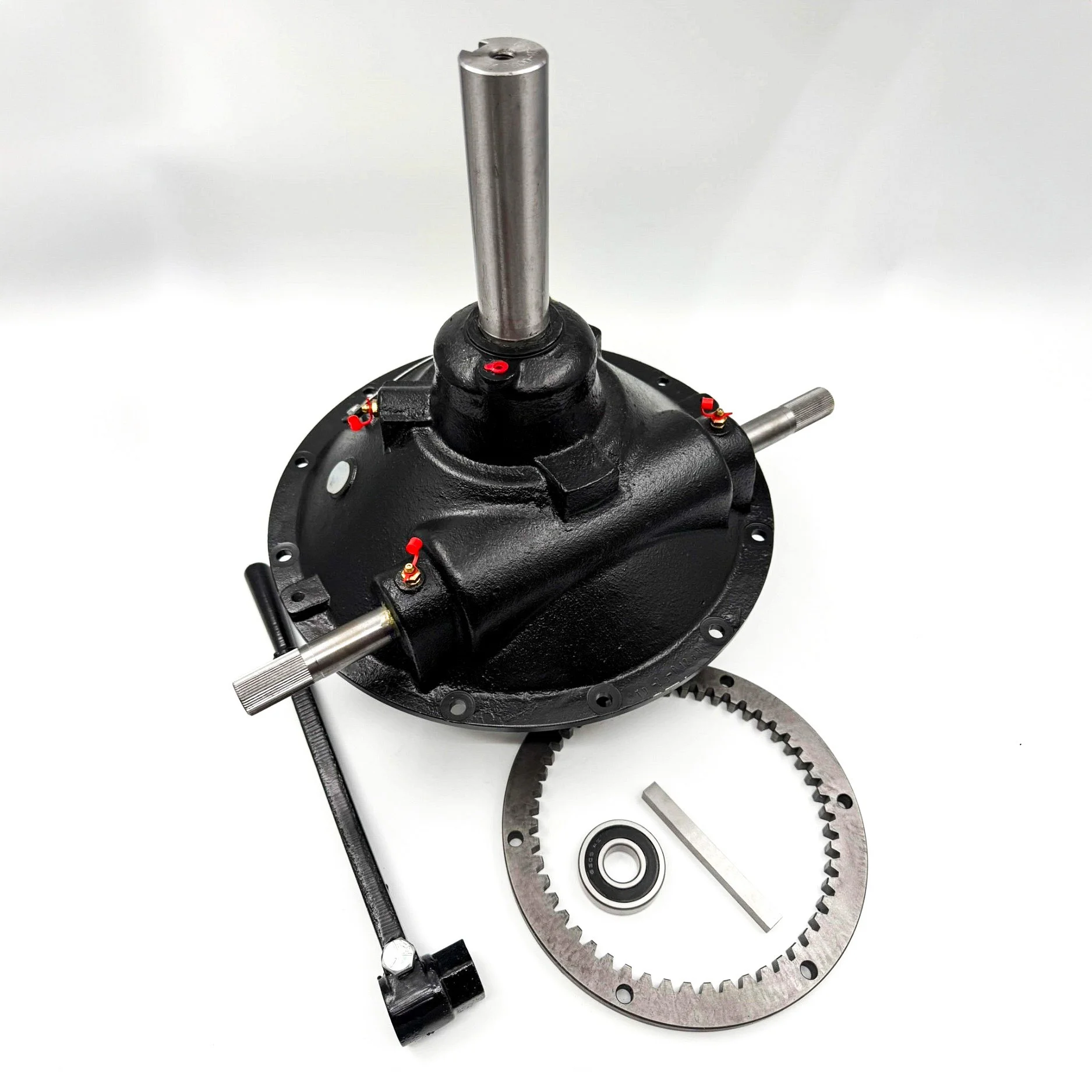

| Includes | Complete PTO (bell housing, shaft, main bearings, operating shaft, clutch pack, operating lever and associated parts), pilot bearing (62mm OD), and drive ring |
