Replacement PTO Clutch for SP311HP2
Category: Complete PTOs SKU: TDWPTP1132AC000PTOBOM Number Required
Your Twin Disc PTO should have both a Model Number and a BOM Number. Only the BOM Number provides definitive confirmation. If you don't have the BOM number, please call a Foley Expert.
Call a Foley Expert$3,595.00
Complete PTO to replace Twin Disc SP311HP2 and WPT P11-32AC-000 PTO clutches
Need help? We’re available:
We're available Mon–Thurs 8:30–5, Fri 8:30–3 (EST)
1-800-233-6539Chat with an expertDescription

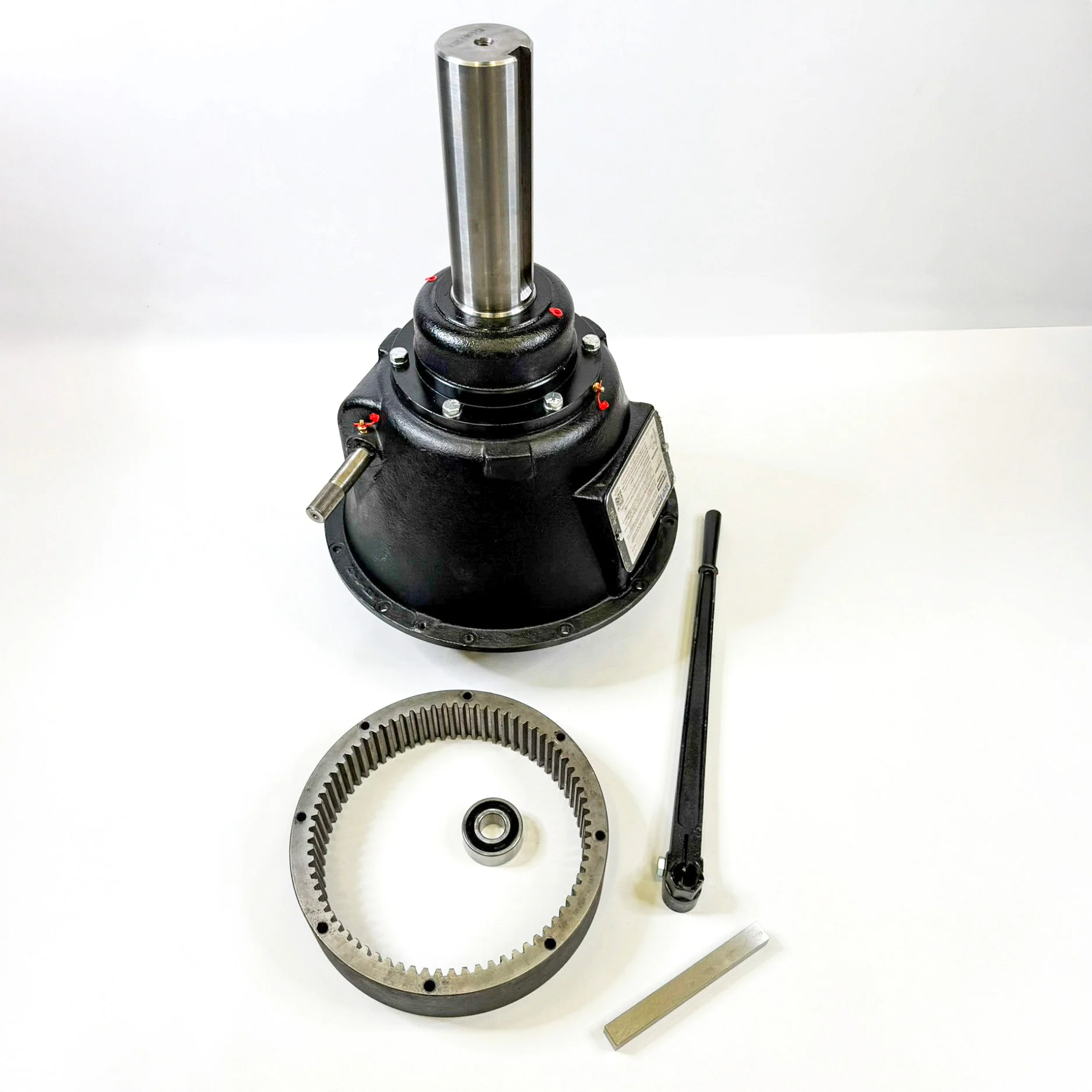

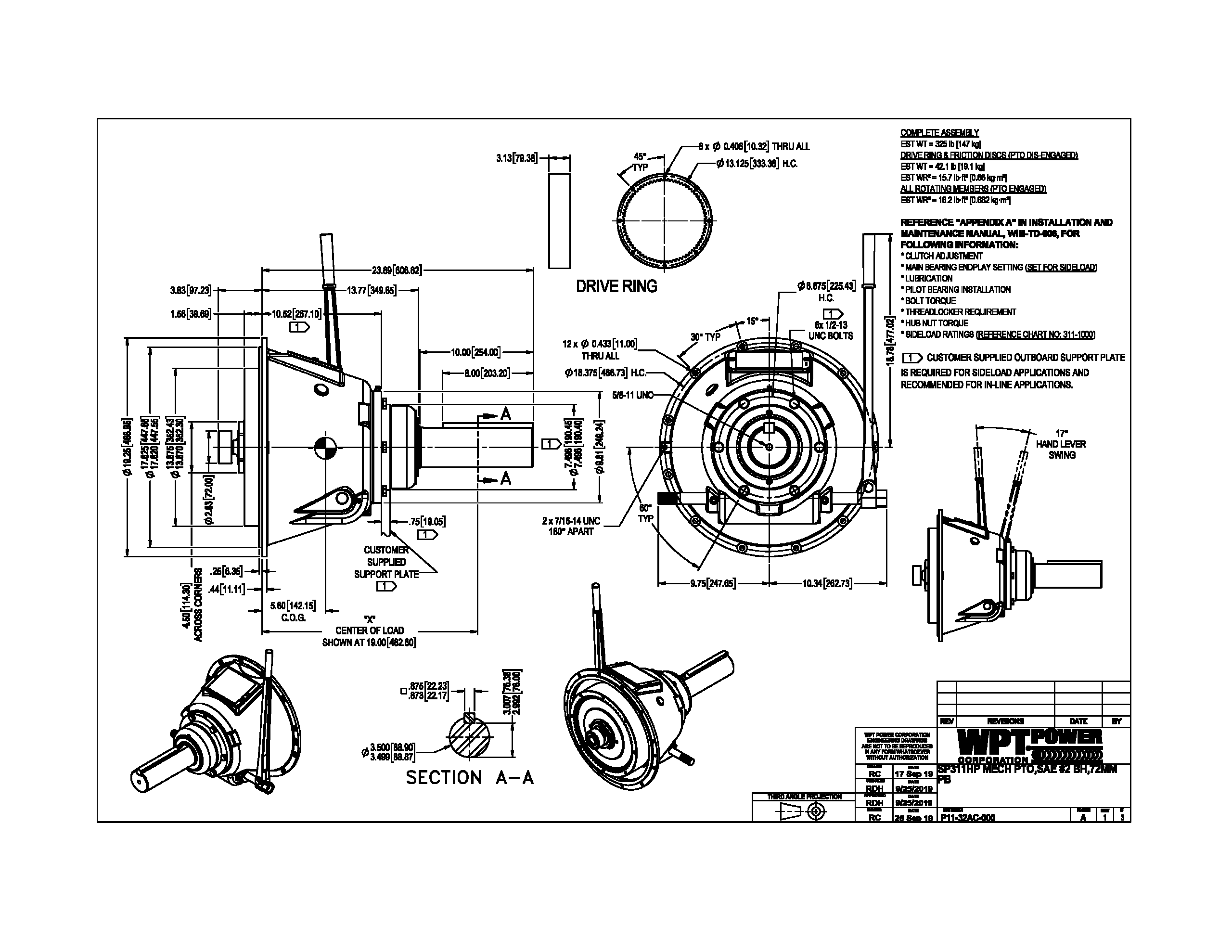

Replacement for the certain Twin Disc model SP311HP2 PTOs and the WPT Power model P11-32AC-000 mechanical power take-off clutches (PTOs). This all new unit comes complete with a replacement drive ring and pilot bearing. If you have any question whether this is the correct replacement for your PTO you can view the detailed plans and specifications for this unit HERE, call us at 866-821-2468 or e-mail: info@foleyengines.com; We want to be sure you order the correct replacement PTO for your application.
Specs
| Weight | 395 lbs |
|---|---|
| Dimensions | 48 × 48 × 24 in |
| Brand Fit | Twin Disc, WPT Power |
| Make | WPT Power |
| Bell Housing SAE | 2 |
| Output Shaft Diameter | 3.50"/88.9mm |
| Output Shaft Length | 10.00"/254.00mm |
| Pilot Bearing OD | 2.83"/72mm |
| Includes | Complete PTO (bell housing, shaft, main bearings, operating shaft, clutch pack, operating lever and associated parts), pilot bearing (72mm OD), and drive ring |
