Replacement PTO Clutch for SP211HP3 – Short Shaft
Category: Complete PTOs SKU: TDWPTP1123AC001PTOBOM Number Required
Your Twin Disc PTO should have both a Model Number and a BOM Number. Only the BOM Number provides definitive confirmation. If you don't have the BOM number, please call a Foley Expert.
Call a Foley Expert$2,395.00
Complete PTO to replace Twin Disc SP211HP3 and WPT P11-23AC-001 PTO clutches with a 4.5″ output shaft
Need help? We’re available:
We're available Mon–Thurs 8:30–5, Fri 8:30–3 (EST)
1-800-233-6539Chat with an expertDescription

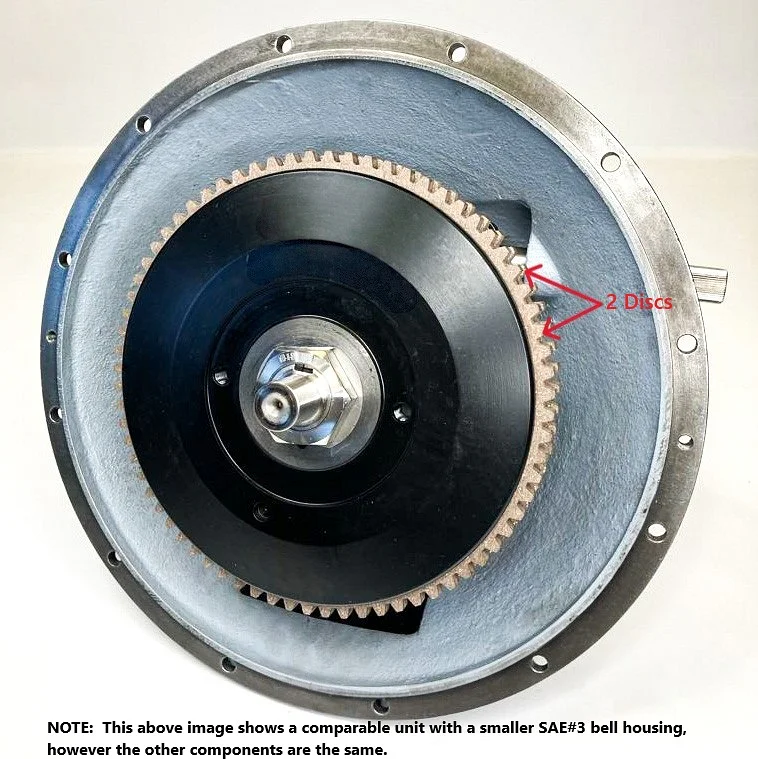

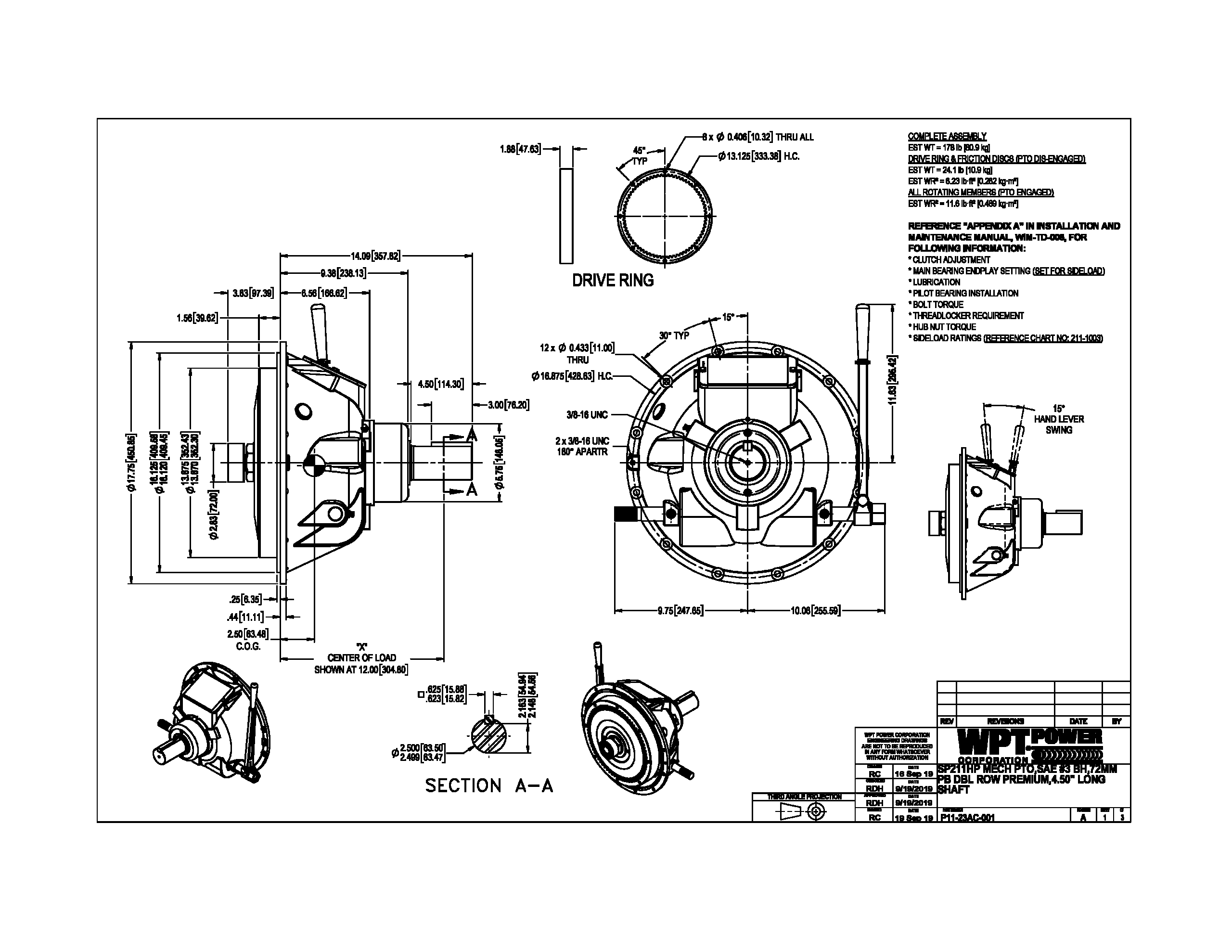

Replacement for the certain Twin Disc model SP211HP3 PTOs and the WPT Power model P11-23AC-001 mechanical power take-off clutches (PTOs) with the shorter 4.5″ output shaft. This all new unit comes complete with a replacement drive ring and pilot bearing. If you have any question whether this is the correct replacement for your PTO you can view the detailed plans and specifications for this unit HERE, call us at 866-821-2468 or e-mail: info@foleyengines.com; We want to be sure you order the correct replacement PTO for your application.

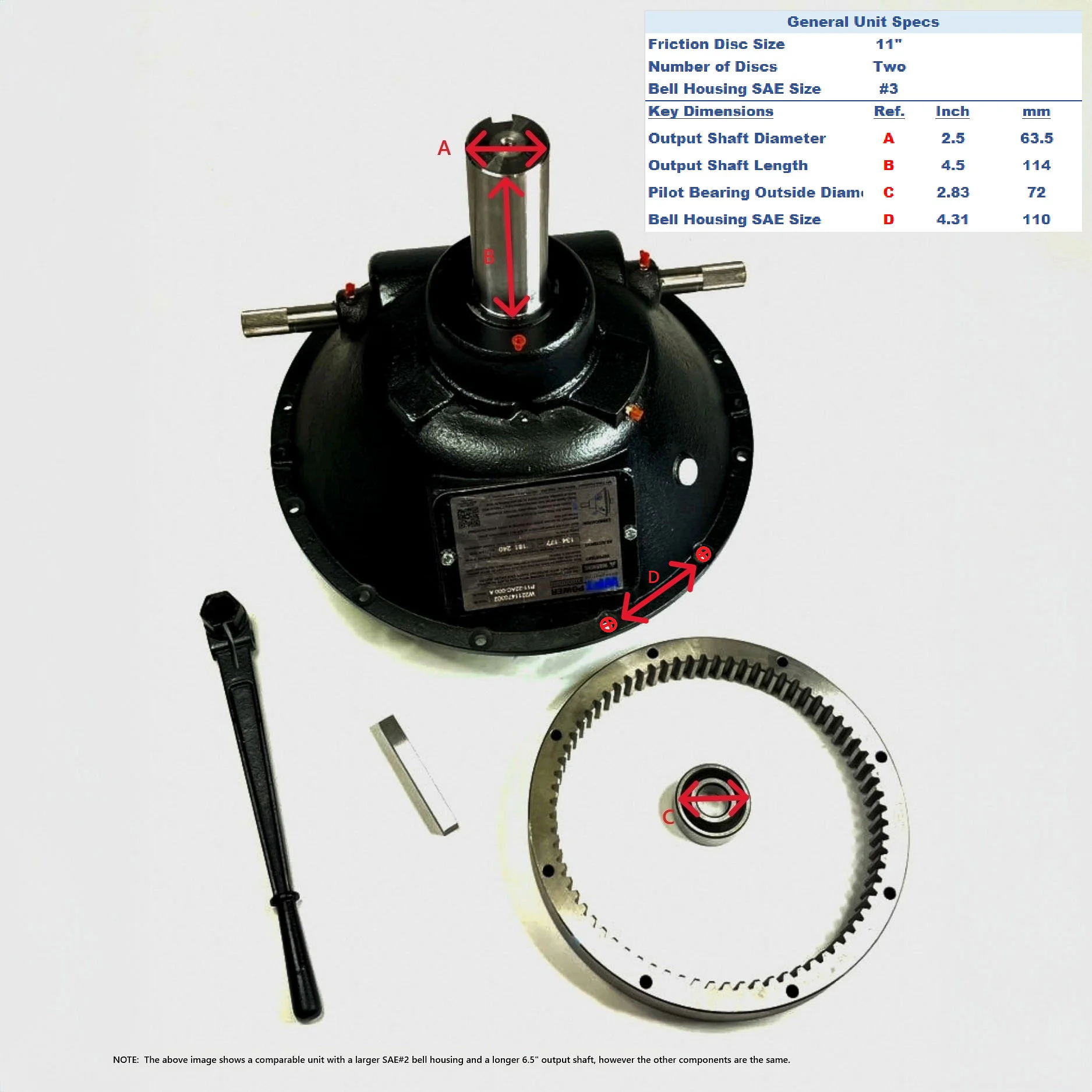

Specs
| Weight | 213 lbs |
|---|---|
| Dimensions | 24 × 24 × 30 in |
| Brand Fit | Twin Disc, WPT Power |
| Make | WPT Power |
| Bell Housing SAE | 3 |
| Output Shaft Diameter | 2.50"/63.50mm |
| Output Shaft Length | 4.50"/114.30mm |
| Pilot Bearing OD | 2.83"/72mm |
| Includes | Complete PTO (bell housing, shaft, main bearings, operating shaft, clutch pack, operating lever and associated parts), pilot bearing (72mm OD), and drive ring |
