Replacement PTO Clutch for SP111HP3 – Short Shaft
Category: Complete PTOs SKU: P11-13AC-005Enter your PTO's model, BOM, assembly, or PTA number to verify fitment.
BOM Number Required
Your Twin Disc PTO should have both a Model Number and a BOM Number. Only the BOM Number provides definitive confirmation. If you don't have the BOM number, please call a Foley Expert.
Call a Foley Expert$1,545.00
Complete PTO to replace Twin Disc SP111HP3 and WPT P11-13AC-005 [4.5″ Output Shaft]
Need help? We’re available:
We're available Mon–Thurs 8:30–5, Fri 8:30–3 (EST)
1-800-233-6539Chat with an expertDescription

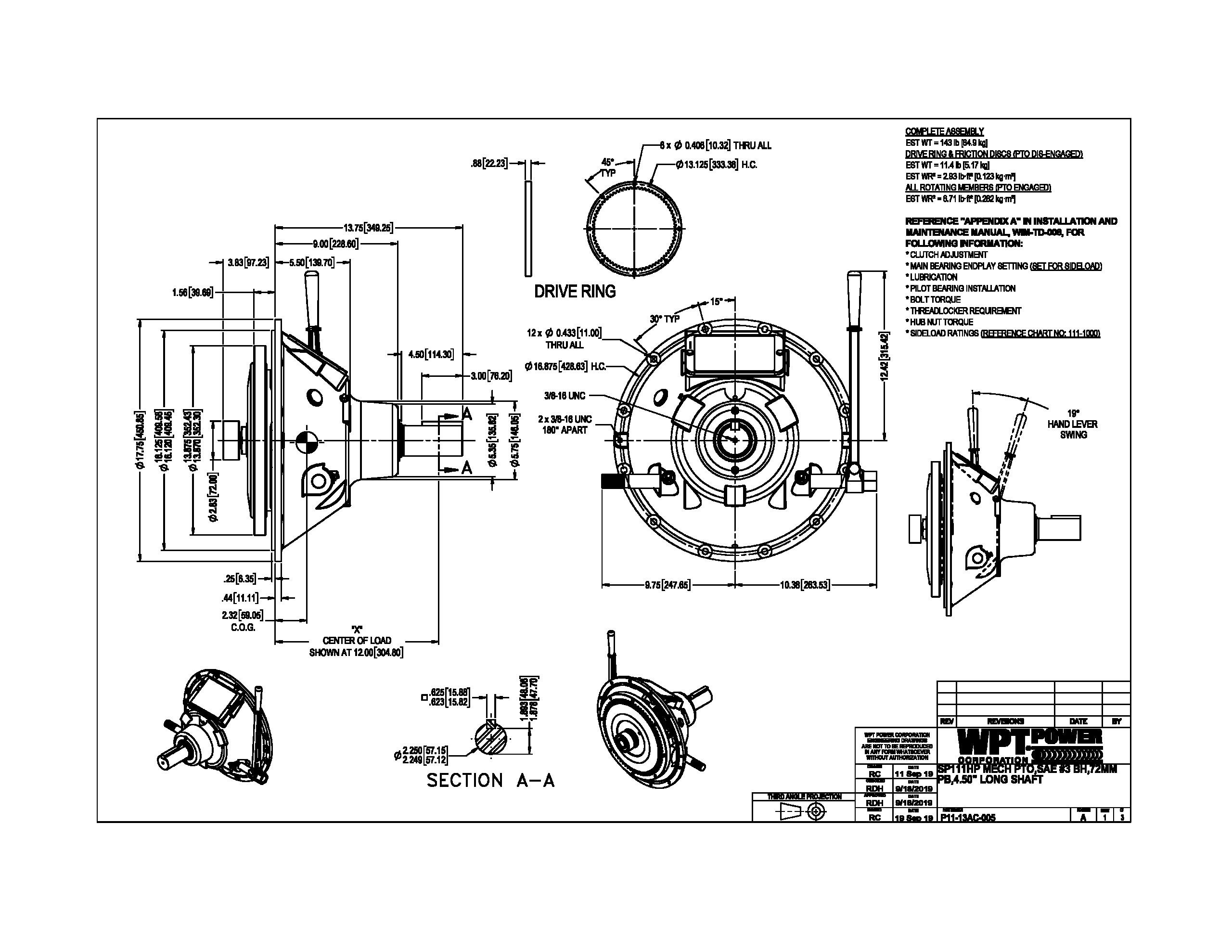

Replacement PTO for the Twin Disc SP111HP3 and WPT P11-13AC-005 mechanical power take-off clutches (PTOs). This all new unit comes complete with a replacement drive ring and pilot bearing and has a 4.5″ long output shaft. If you have any question whether this is the correct replacement for your PTO you can view the plans and dimensions for this unit [HERE], review the Specifications below and call us with questions to make sure you get the correct PTO or the clutch parts you need.

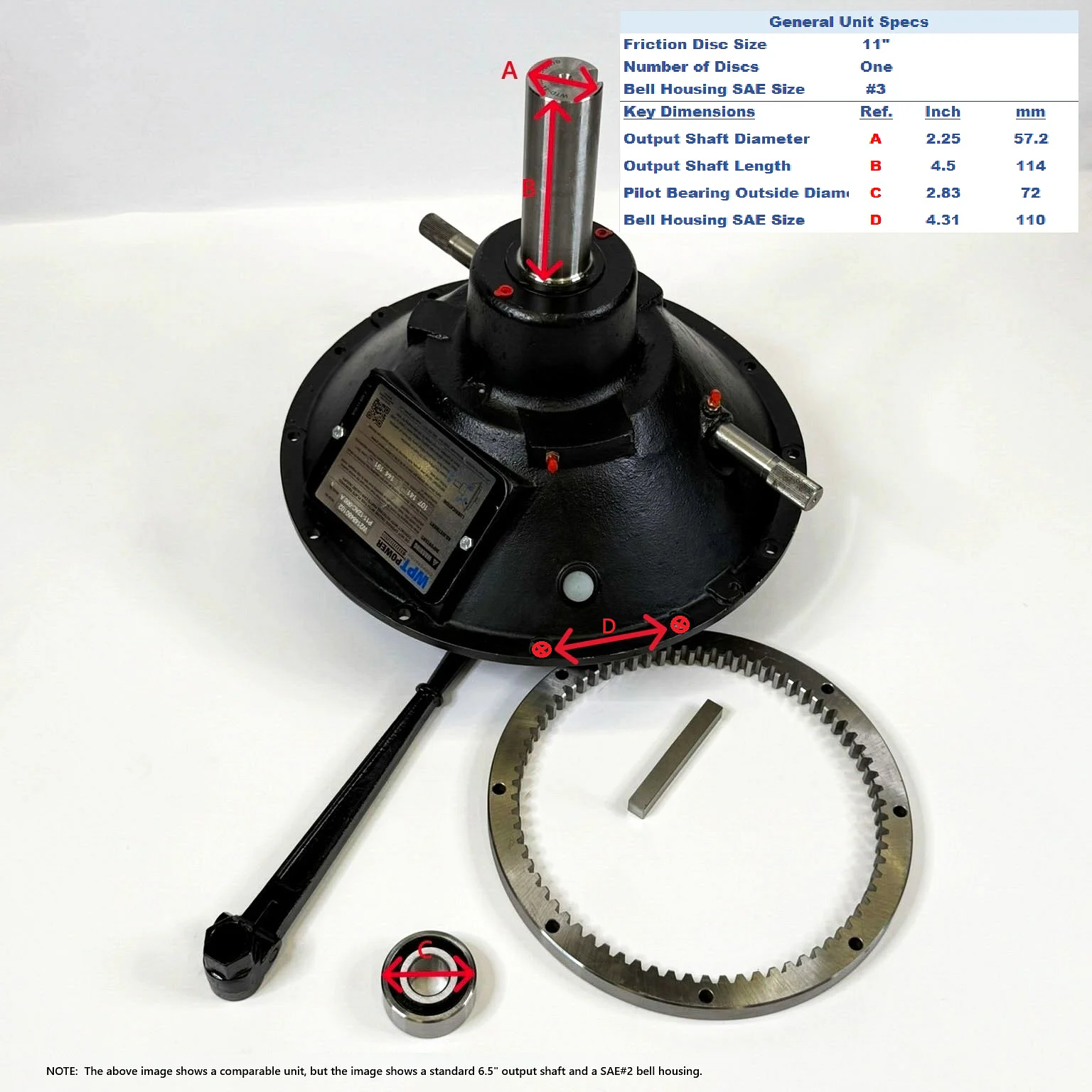

Specs
| Weight | 178 lbs |
|---|---|
| Dimensions | 24 × 24 × 24 in |
| Brand Fit | Twin Disc, WPT Power |
| Make | WPT Power |
| Bell Housing SAE | 3 |
| Output Shaft Diameter | 2.25"/57.15mm |

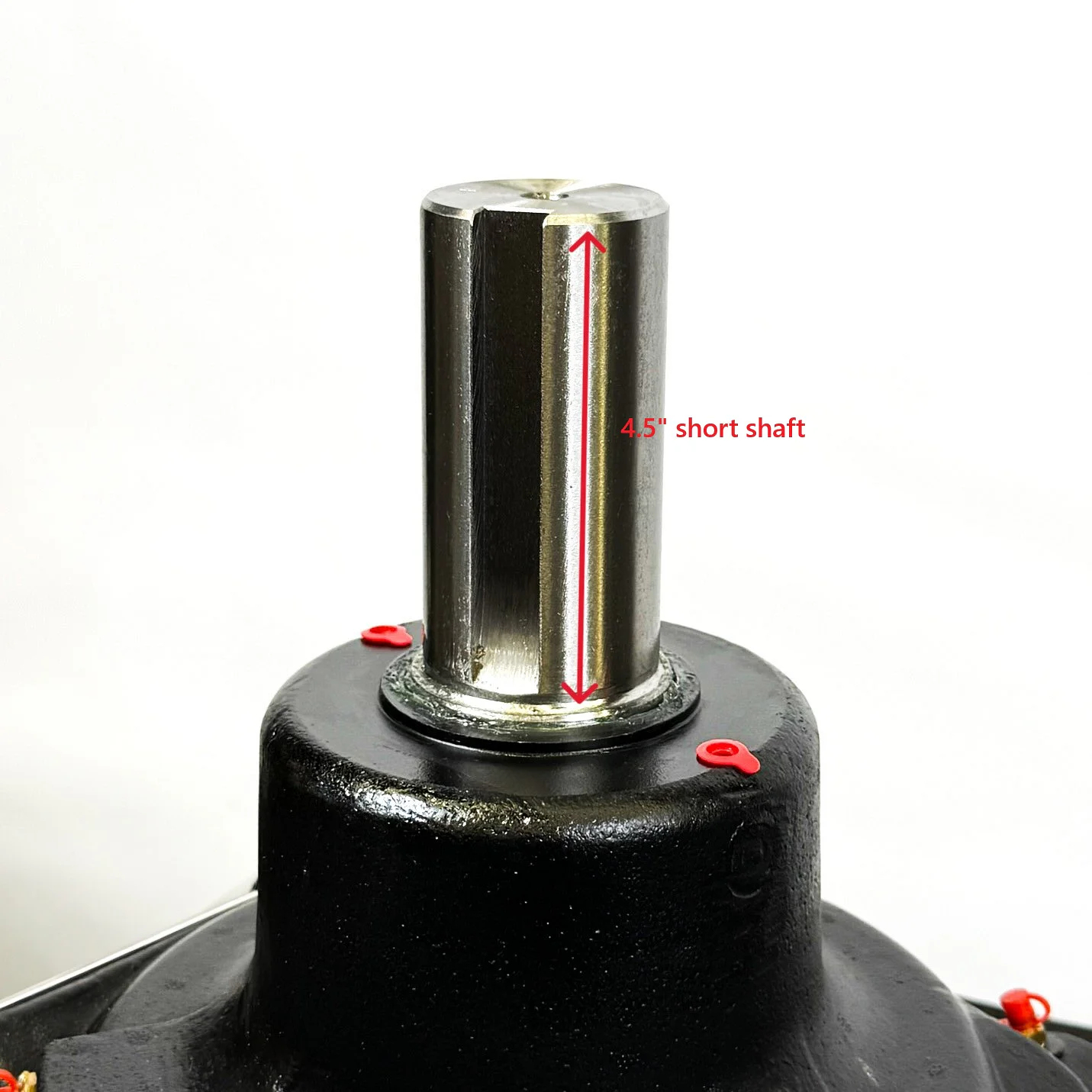

| Output Shaft Length | 4.50"/114.30mm |
| Pilot Bearing OD | 2.83"/72mm |

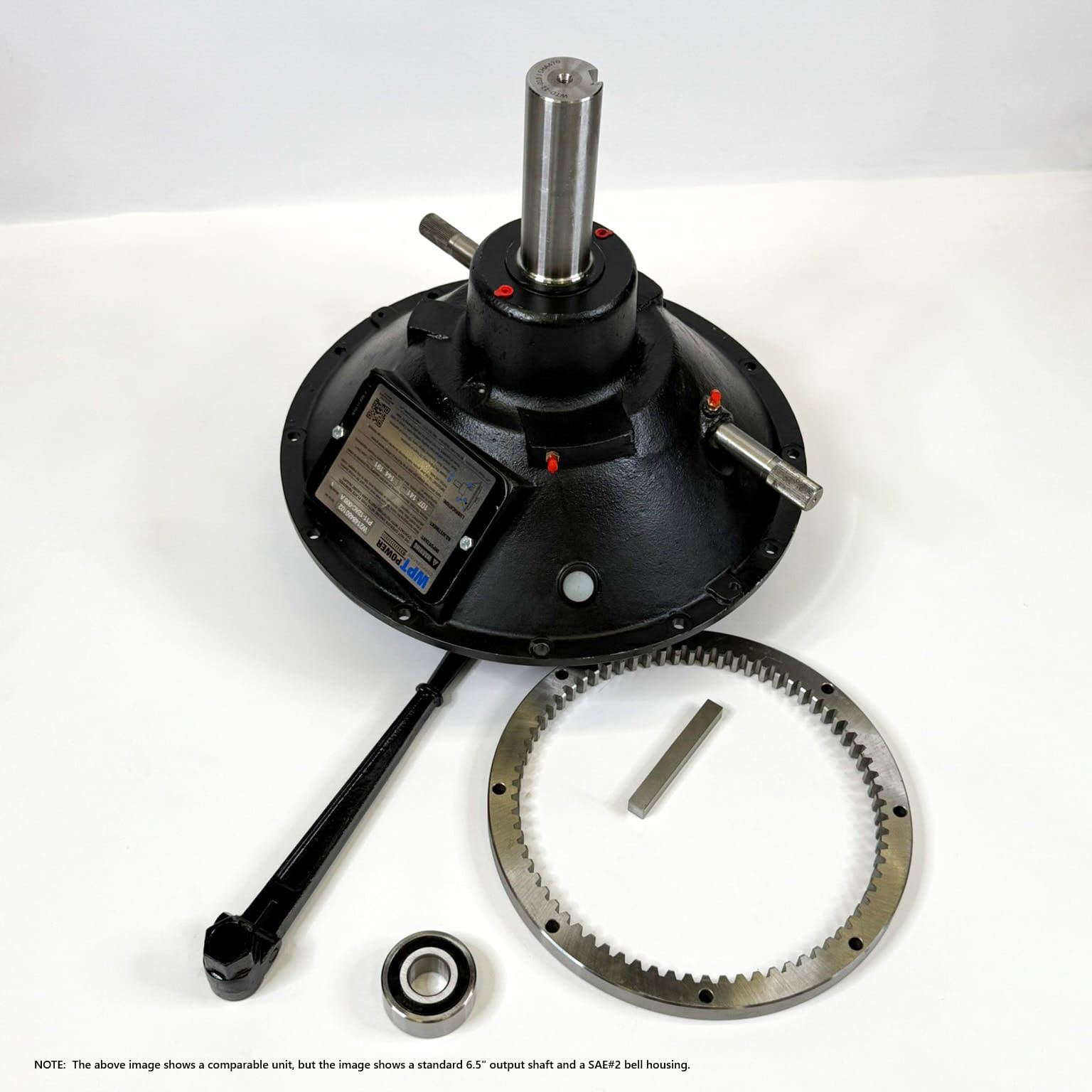

| Includes | Complete PTO (bell housing, shaft, main bearings, operating shaft, clutch pack, operating lever and associated parts), pilot bearing (72mm OD), and drive ring |
