Universal Deutz Engine Panel
Category: Control Panels SKU: DTZUNIPNLPrice range: $1,195.00 through $1,920.00

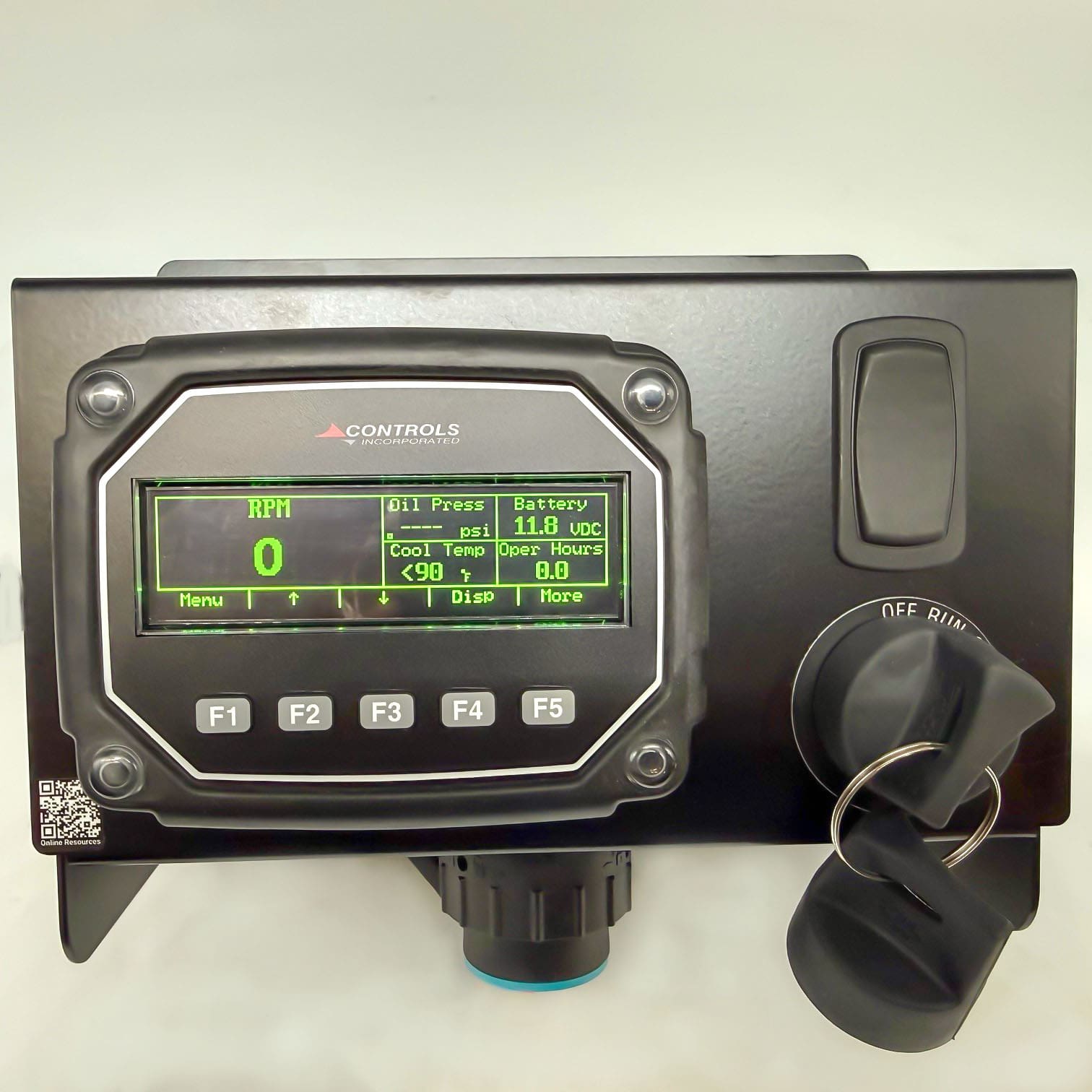

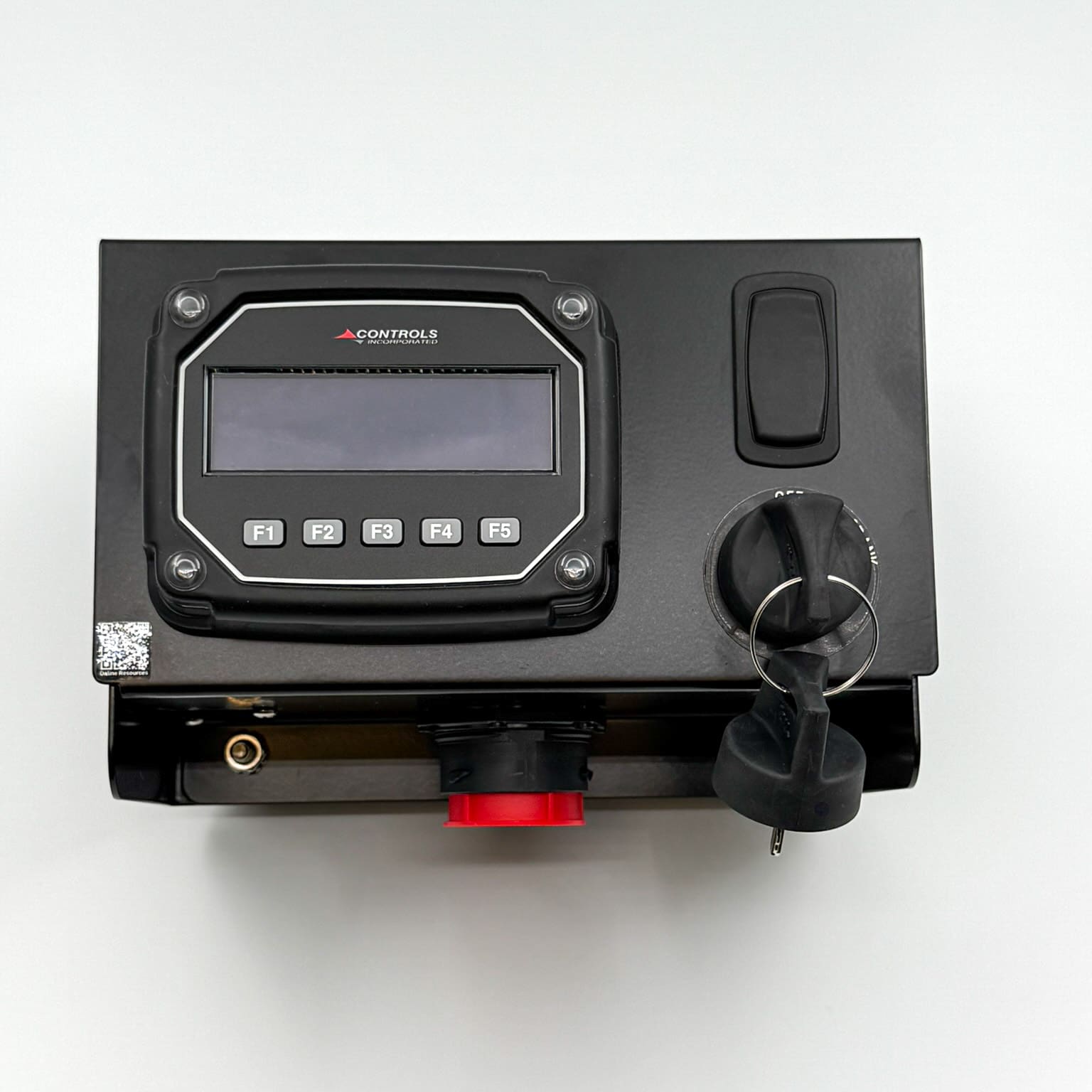

Engine Control Panel / Emergency Shutdown Panel developed in conjunction with Controls, Inc. and designed to fit Deutz 912, 913, 914, 1011F, and 2011 series engines as easily as possible.
Monitors and shuts down for oil temperature and pressure as well as monitoring RPM, fuel, battery, engine load and operating hours. Simple keyed switch, dim-light OLED display and panel display lights enhance readability and warning visibility.
If ordering for a 912, 913 or 914 engine, please indicate whether your engine’s oil temperature sensor is in the cylinder head or the oil filter housing.
Need help? We’re available:
We're available Mon–Thurs 8:30–5, Fri 8:30–3 (EST)
1-800-233-6539Chat with an expertDescription
This engine control panel has been customized to fit Deutz 912, 913, 914, 1011, 1011F, and 2011 series engines. We worked with Controls, Inc. to develop a custom engine panel harnesses designed to make adding this to your Deutz engine as easy as possible.
The panel includes the following features:
- Monitors Engine Hours, RPM, and Percent Load
- Fuel Level Indicator
- Voltage Meter
- Oil Pressure Gauge with Built-in Emergency Shutdown for Low Pressure
- Oil Temperature Gauge with Built-in Emergency Shutdown for High Temperature
- Keyed Start/Stop Switch
- Dim Light OLED Display
- Available for 12 or 24 Volt Systems

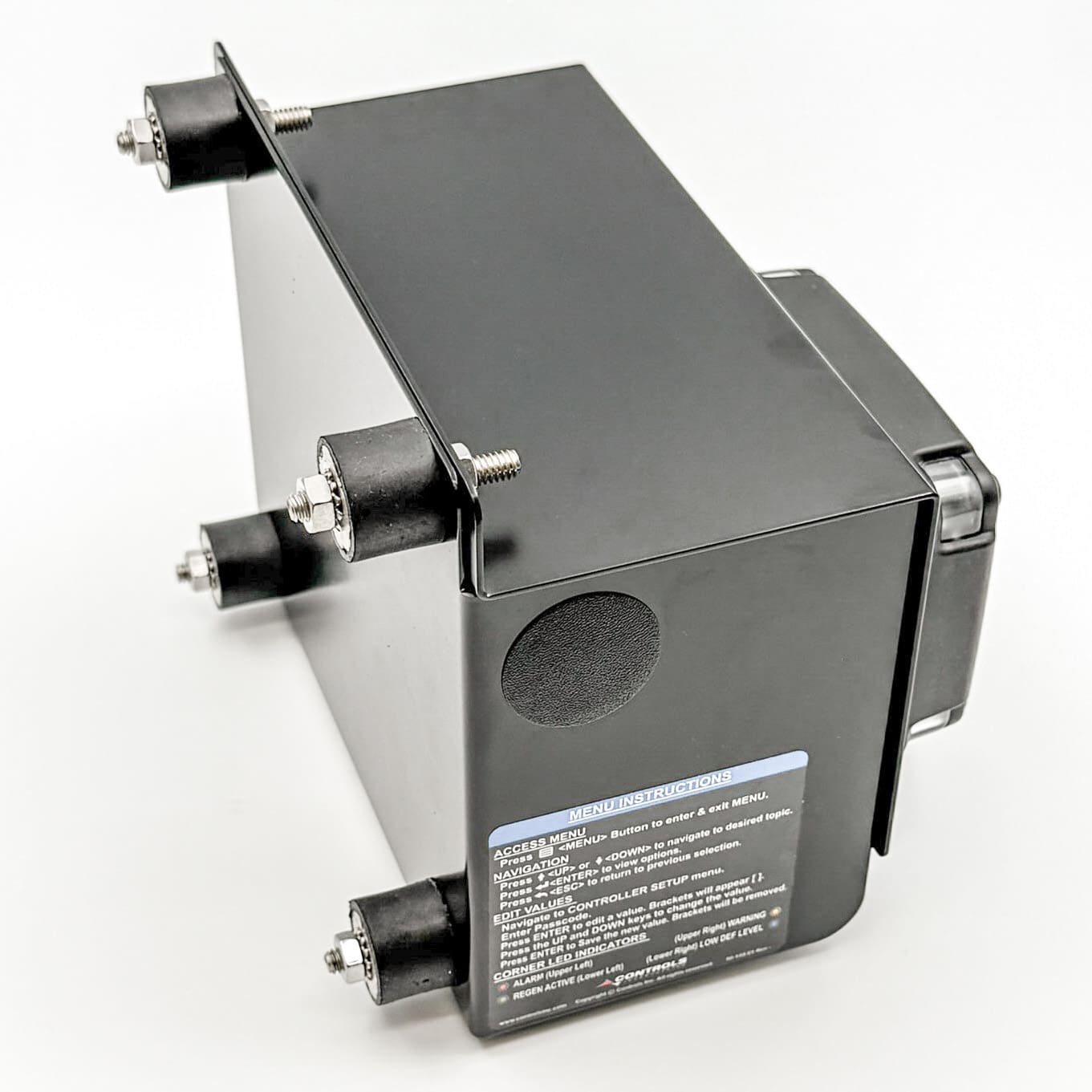

- Water Tight Protective Enclosure with Rubber Isolator Mounts
If you are ordering this panel for a 912, 913 or 914 engine, please indicate whether the oil temperature sensor is in the cylinder head or the oil filter housing so the panel may be pre-programmed appropriately.
Specs
| Weight | 9 lbs |
|---|---|
| Dimensions | 18 × 18 × 10 in |
| Brand Fit | Deutz |
| Model Fit | 1011F / 2011, 912 / 913, 914 |
| Configuration | with Harness Extension, without Harness Extension |
| Product Type | Gauge, Sensor, Tools |
| Product Details | 12V, 24V |
| Size | Approx.: 8" Wide X 6" High X 7" Deep |
| Contents | Controls, Inc. RX-3150 Engine Control Panel; and |
