EGR Shuttle/Reed Valve for Deutz 2.2, 2.9, 3.6, 4.1, 6.1 and 7.8 Series Engines

This replacement shuttle/reed valve is part of the EGR cooler. It fits all turbocharged Deutz (TD or TCD) 2.2 to 7.8 series engines and is designed with an integrated gasket to make replacement a breeze. The purpose of this vale is to stop boost pressure in the intake manifold from bleeding out of the exhaust system through the EGR cooler. If your engine is continuing to give off black smoke after startup, this is one of the possible causes. Give us a call if you need any engine support.

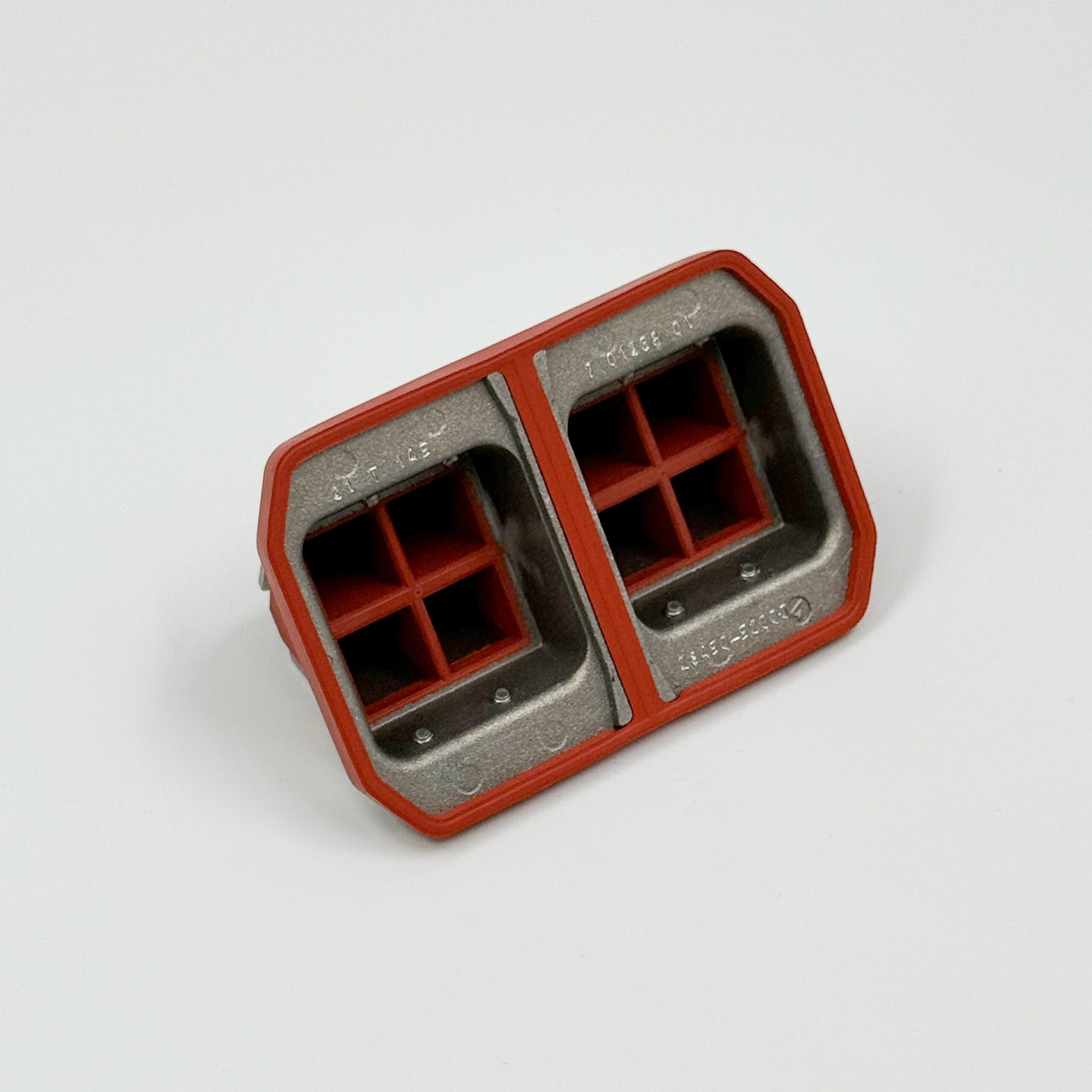

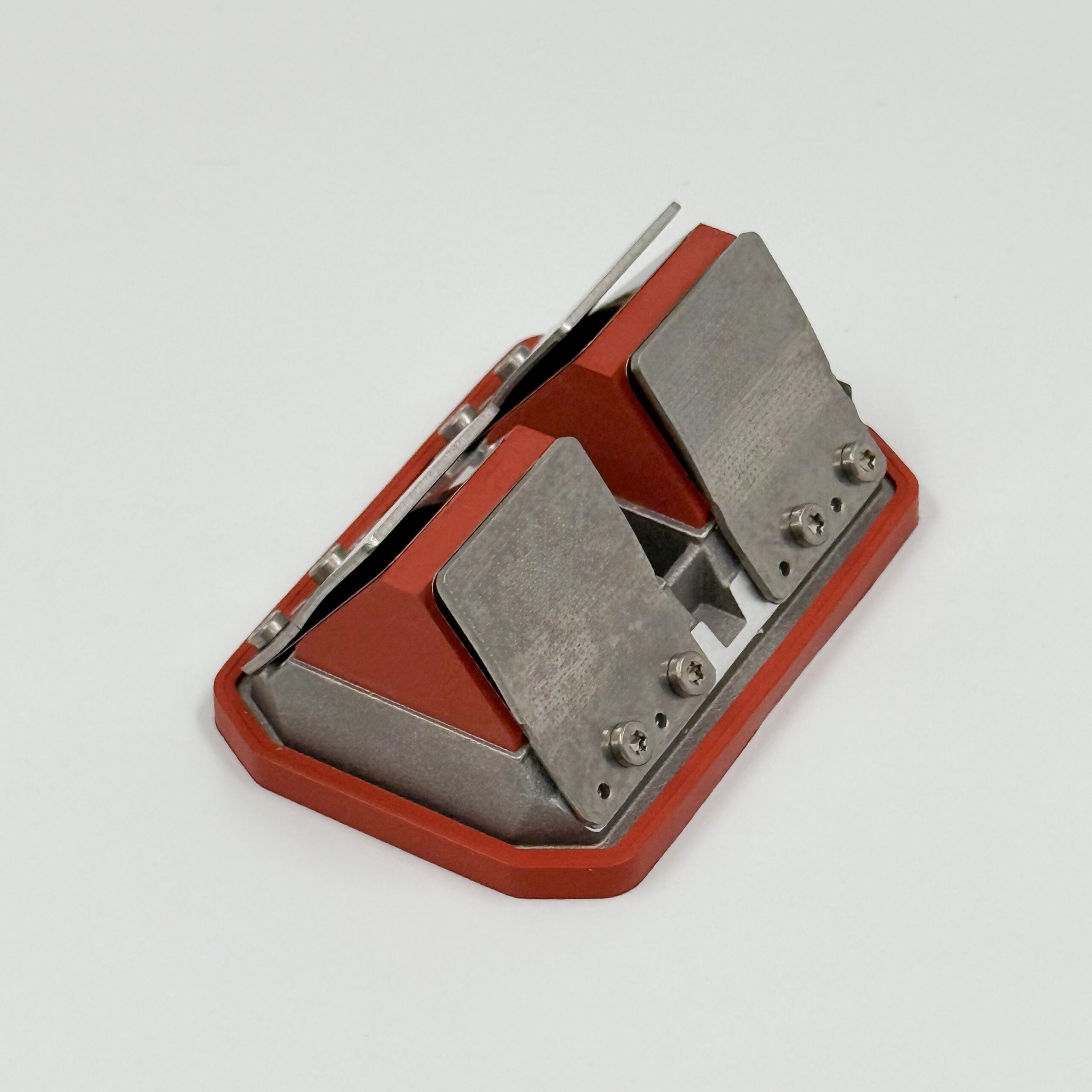

Th pictured unit is a direct replacement for Deutz part numbers 04257888 which was designed for higher horsepower engines where it needs to withstand higher heat levels.  This part can also replaced part numbers 04265310, 04515377 and 04125434 which were specified for lower horsepower engines where they did not need to tolerate as much engine exhaust heat.
